MXP-160 Busbar Leveling Machine
Details

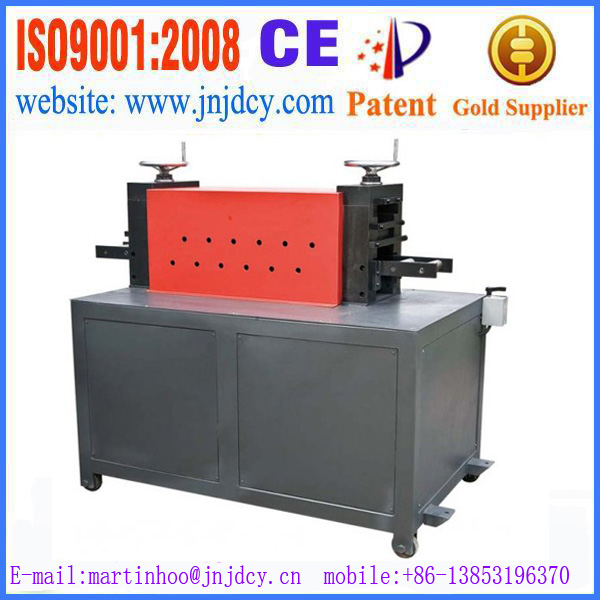

1, Name: Busbar Leveling Machine (MXP-160 and MXP-300)
2, Picture and our power(certificate)
Our
busbar leveling machine has passed ISO9001-2008, CE certificate, and the machine also passed Chinese government exporting quality assurance quality certificate. 4 years gold supplier in alibaba website.
3, Video link:
4, Instruction:busbar leveling machine also called busbar straightening machine, busbar flattening machine, which is mainly used for busbar straightening.
5, Working principle and use:1) Multi-roller forced leveling principle to achieve good effect of leveling.
2) With high efficiency and convenient to use.
It adopts multi-roller forced leveling principle, which makes irregular shaped busbar rows to be level state through sinuous movement. When the irregular shaped busbar rows get through the up-down dynamic rollers, the unordered deformation and inner stress will be removed. Then the busbar can be level enough.
6, Technical parameters :
| Item | MXP-160 | MXP-300 |
| Material of busbar | Copper, Aluminum | Copper, Aluminum |
| Max.width of processing(mm) | 160 | 300 |
| Thickness range of processing(mm) | 3-15 | 3-15 |
| Quantity of leveling roller--up | 5 | 5 |
| Quantity of leveling roller--down | 6 | 6 |
| Rotational speed of roller axis(RPM) | 34 | 34 |
| Leveling roller speed(mm/min) | 6500 | 6500 |
| Diameter of leveling roller(mm) | Φ90 | Φ90 |
| Worktable height(mm) | 860 | 860 |
| Power of motor/voltage(KW/V) | 2.2/380 | 4/380 |
| Outline dimension L*W*H(mm) | 1300x800x1350 | 1300x950x1350 |
| Machine weight(KG) | 700 | 800 |
7, Price and payment term:
7-1 price:
Contact with me forwardly, there is discount price for you!
7-2 payment term: (ESCROW payment is safer and convenient for you)
30% deposit and the balance paid against the copy of B/L in 5 days by T/T
8, Delivery time:
3 days after received the 30% deposit by T/T.
9, Details:
10, Certificate:
