1, Name: CNC Hydraulic Turret Punch Press
Model: SKCY300
2, Picture and our power

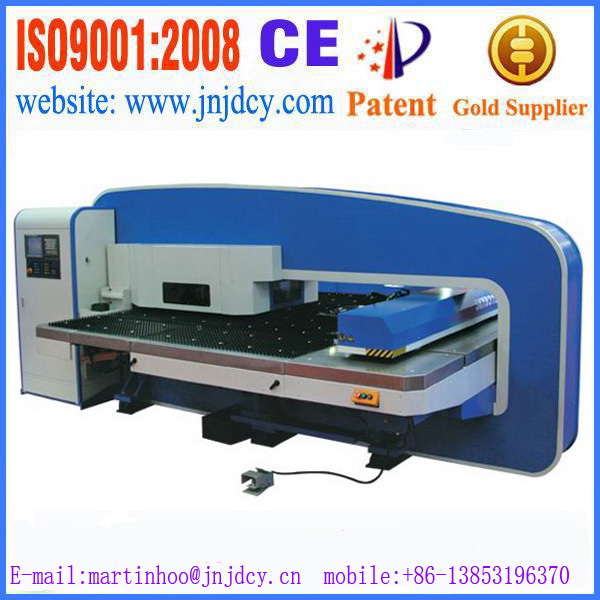

Our SKCY31240
CNC turret punch press has passed ISO9001:2008, CE certificate. And at the same time, it is passed test of Chinese exporting government and authorize us to exporting.
We adopt Germany technology, high configuration, SIEMENS control system, Harley(H+L) hydraulic system. Standard worktable 1250x2500mm.
3, Video link:
4, Instruction:CNC hydraulic turret punch press is also called hydraulic turret punch press,
CNC turret punch press, which is mainly used for punching holes in metal sheet.
SKCY31240 CNC hydraulic turret punch press is a new generation hi-tech punching machine researched and devised by our company technical staff. It adopts hydraulic transmission method, the machine body is integrated welded structure, firm and durable.
5, Main components instruction:5-1, hardware instruction
CNC system, ball screw, linear guide, servo system, hydraulic power system, magnetic valve, cylinder, proximity switch, power supply, mould, float clamp, automatic programming.
1) it adopts high precision thicken turret which is made by wear-resistant material subtly. Using long-guide mould assures the alignability, which enlarges the mould life.
2) It adopts the original CNC system of SIMENS from Germany with standard RS232 interface, language changing between Chinese and English, powerful diagnostic function and universal G-code programming.
3) It adopts digital AC servo motor to assure operating speed and running smoothly, long time precision and high reliability.
4) Hydraulic power system is imported from Germany to assure the machine power performance and reliability. Low noise, less heat and energy-saving.
5) It adopts standard full float clamp, which is up-down structure to avoid material twisting and transmutation and moved conveniently. It uses brush steel ball compositive worktable. Plate can be processed smoothly and no noise, no scratch.
5-2, software instruction
Computer automatic programming system—AutoSoft
AutoSoft is a new generation automatic programming marking system, which is researched and devised by ourselves based on learning of the same kind foreign programming advantages in order to improve programming quality and efficiency of CNC punching machine, shearing machine and punching and shearing compounded machine. This software is suitable for both imported and domestic CNC system with high general usage. Processing code and information can be formed automatically according to different CNC system of foreign and domestic.
5-3, The system function:
Graphics design and edit.
Mould system operation.
High automation: automatic choosing mould, automatic repeat location, automatic optimization, route optimization.
Manual intervention: adjusting and changing mould, choosing partial for processing, compensating direction, processing order, processing craftwork changing, stop and connection, adjusting punching location of cylinder repeating.
AUTOCAD interface function: Drawing designed by AUTOCAD can be accepted by this system and form processing program without any treatment.
Automatic marking system: It can mark hardware in order according to processing plan and modify marking drawing manually according processing requirement.
Parameter adjustment: parameter can be adjusted according to machine requirement like: clamp position, tiny joint size, processing range, reference point, stations, rotary station, clamp confirmed area size, graphic tolerance, smashing size, cylinder distance, distance between punching head and cylinder, punching arc mould size, out punching contour mould size, and so on.
Processing preview:
Processing efficiency and route can be reflected synchronously.
6, Technical parameters: | Machine model | SKCY21180 | SKCY31240 | SKCY31320 |
| Nominal pressure | 200 KN | 300 KN | 300 KN |
| Max punching diameter | F88.9 mm | F88.9 mm | F88.9 mm |
| Max plate size(one time location) | 1250 ×2500 mm | 1250 ×2500 mm | 1250 ×2500 mm |
| Max plate thickness | 5mm | 6 mm | 6 mm |
| Max plate weight | 150 kg | 150 kg | 150 kg |
| Punching accuracy | +0.1 mm | +0.1 mm | +0.1 mm |
| Replicate positioning accuracy | +0.02 mm | +0.02 mm | +0.02 mm |
| sliding block stroke | 30 mm | 30 mm | 30 mm |
| Max time of sliding block stroke | 600 h.p.m | 600 h.p.m | 600 h.p.m |
| Max speed of plate feeding | 60 m/min | 60 m/min | 60 m/min |
| X/Y axis nominal stroke | X=1250mm, Y>1250mm | X=1250mm; Y>1250mm | X=1250mm Y>1250mm |
| Throat depth | 1280 mm | 1280 mm | 1280 mm |
| Turret rotary speed | 30 r.p.m | 30 r.p.m | 30 r.p.m |
| Turret mold station | 18 station | 24 station | 32 station |
| Mold structure | General long guide mould | General long guide mold | General long guide mold |
| Turret structure | Thick turret | Thick turret | Thick turret |
| Turret transmission method | Worm gear drive | Worm gear drive | Worm gear drive |
| Clamp quantity | 2 | 2 | 2 |
| Clamp structure | Full float | Full float | Full float |
| Replicate positioning equipment | have | have | have |
| CNC system | Germany Siemens 802C | Germany Siemens 802C | Germany Siemens 802C |
| Control axis | 3 axis control | 3 axis control | 3 axis control |
| System configuration | 256K memory | 256K memory | 256K memory |
| RS232C communication interface | Have | Have | Have |
| monitor | 8.4" LCD monitor | 8.4" LCD monitor | 8.4" LCD monitor |
| Machine body structure | Open structure | Open structure | Open structure |
Method of machine
body heat treatment | Stress relieving
annealing | Stress relieving
annealing | Stress relieving
annealing |
| Main electric motor power | 11 KW | 11 KW | 11 KW |
| Electric power (AC 3 phase380V) | 40 KVA | 40 KVA | 40 KVA |
| Gas consumption | 0.2 m3/min | 0.2 m3/min | 0.2 m3/min |
| Air pressure | 0.55 MPa | 0.55 MPa | 0.55 MPa |
| Machine dimension (mm) | 4895×2800×2110 | 4895×2800×2110 | 4895×2800×2110 |
| Machine weight | 12 Tons | 12 Tons | 12 Tons |
7
, Main Configuration Details:| No. | Name | Quantity | Country/company |
| 1 | SIEMENS 802C of Germany CNC system special used in punching machine | 1 set | SIEMENS of Germany |
| 2 | AC numerical servo magnifier | 4 sets | Yaskawa of Japan |
| 3 | AC numerical servo power motor | 4 sets | Yaskawa of Japan |
| 4 | Hydraulic power system assembly | 1 set | H+L hydraulic of Germany originally |
| 5 | Precision ball guide screw | 2 pcs | HIWIN of Germany |
| 6 | Precision guide screw bearing | 4 pcs | INA of Germany |
| 7 | Precision line rolling guide | 2 pcs | HIWIN of Germany |
| 8 | Hydraulic rubber tube | 3 pcs | imported |
| 9 | cylinder | 7 pcs | SMC of Japan |
| 10 | Air 3 sets unit | 1 set | SMC of Japan |
| 11 | Main electrical cells | 1 set | Schneider or OMRON |
| 12 | clamp | 2 sets | Full float |
| 13 | Relay | 10 pcs | OMRON of Japan |
| 14 | Proximity switch | 14 pcs | TURCK of Germany |
8, Price and payment term: 8-1 price:
Contact with me forwardly. There is discount price for you!
8-2 payment term: (ESCROW payment is safer and convenient for you)
30% deposit and the balance paid before delivery by T/T.
9, Delivery time: 60 days after received the 30% deposit by T/T.
