 Details

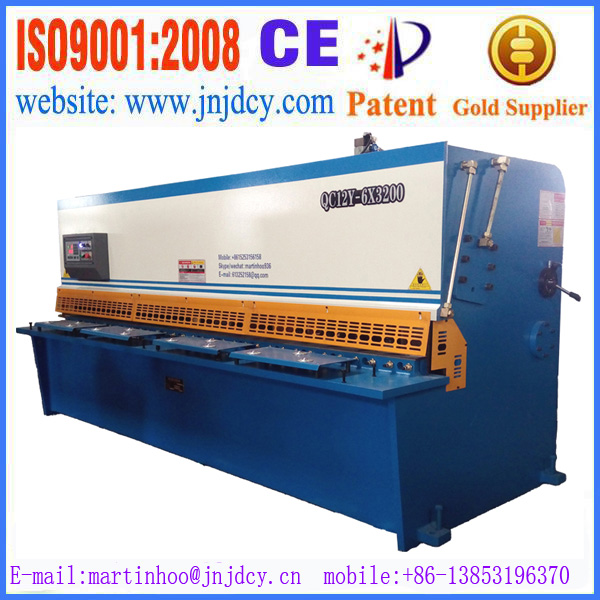

1, Name: QC12Y Hydraulic Shearing Machine

2, Picture and our power(certificate)Our QC12Y hydraulic metal cutting machine has passed ISO9001-2008, CE certificate, and the machine also passed Chinese government exporting quality assurance quality certificate. 4 years gold supplier in alibaba website.

3, Video link:


4, Instruction:
CNC shearing machine is also called CNC cutting machine, hydraulic CNC shearing machine, guillotine shearing machine, plate shearing machine, metal sheet shearing machine, steel sheet cutting machine, steel sheet shearing machine, which is main used for cutting and shearing steel sheet.
This machine is mainly used for shearing and processing of metallic board in the industries such as machinery manufacture, high or low pressure switch cabinet, household appliance, automobile, grain machinery, medical appliance, kitchen equipment, light industry, textile machinery, chemical machinery, ship making, stainless steel decoration and so on.

5, Technical Parameters:

Model	Max.cutting  thickness (mm)	Max. Cutting  width (mm)	Shearing angle  (  °  ″  )	Strokes  (times/min)	Back gauge  (mm)	Main power  (KW)	weight  (kg)	Dimension (L x W x H)  mm
QC12Y-4x2500	4	2500	1°  30″	≥18	20-600	4	4200	3040x1610x1650
QC12Y-4x3200	4	3200	1°  30″	≥14	20-600	5.5	5500	3840x1610x1650
QC12Y-4x4000	4	4000	1°  30″	≥10	20-600	5.5	6500	4640x1705x1700
QC12Y-4x6000	4	6000	1°  30″	≥10	20-600	7.5	15000	6460x2100x3200
QC12Y-6x2500	6	2500	1°  30″	≥18	20-600	7.5	5200	3140x1610x1650
QC12Y-6x3200	6	3200	1°  30″	≥14	20-600	7.5	6500	3840x1610x1650
QC12Y-6x4000	6	4000	1°  30″	≥10	20-600	7.5	7500	4640x1705x1700
QC12Y-6x5000	6	5000	1°  30″	≥10	20-750	11	13500	5786x2200x2160
QC12Y-6x6000	6	6000	1°  30″	≥7	20-800	15	17000	6900x2570x2280
QC12Y-8x2500	8	2500	1°  30″	≥14	20-600	11	5800	3040x1610x1650
QC12Y-8x3200	8	3200	1°  30″	≥10	20-600	11	6800	3840x1610x1650
QC12Y-8x4000	8	4000	1°  30″	≥8	20-600	11	8500	4860x1705x1700
QC12Y-8x5000	8	5000	1°  30″	≥7	20-750	15	15000	5786x2252x2310
QC12Y-8x6000	8	6000	1°  30″	≥5	20-750	18.5	18000	6900x2570x2280
QC12Y-10x2500	10	2500	1°  30″	≥11	20-600	15	6500	3350x2050x1950
QC12Y-10x3200	10	3200	1°  30″	≥10	20-600	15	7400	4050x2050x1950
QC12Y-10x4000	10	4000	1°  30″	≥12	20-600	18.5	12500	4800x2200x2100
QC12Y-10x6000	10	6000	1°  30″	≥10	20-800	18.5	22000	6900x2570x2280
QC12Y-12x2500	12	2500	1°  30″	≥11	20-600	18.5	9500	3350x2050x1950
QC12Y-12x3200	12	3200	1°  30″	≥10	20-800	18.5	11500	4020x2050x2230
QC12Y-12x4000	12	4000	1°  30″	≥8	20-800	18.5	13500	4820x2400x2730
QC12Y-12x5000	12	5000	1°  30″	≥7	20-800	22	18000	5600x2500x2000
QC12Y-12x6000	12	6000	1°  30″	≥6	20-800	22	19000	6900x2570x2280
QC12Y-16x2500	16	2500	2°	≥8	20-800	18.5	11500	3520x2060x2350
QC12Y-16x3200	16	3200	2°	≥7	20-800	22	13500	4062x2300x2320
QC12Y-16x4000	16	4000	2°	≥5	20-800	22	16000	4850x2350x2300
QC12Y-16x5000	16	5000	2°	≥5	20-800	22	25000	5900x2600x2700
QC12Y-16x6000	16	6000	2°	≥5	20-800	22	36800	6900x2700x2700
QC12Y-20x2500	20	2500	2°  30″	≥6	20-800	37	18000	3400x2088x2570
QC12Y-20x3200	20	3200	2°  30″	≥5	30-800	37	23000	4150x2350x2710
QC12Y-20x4000	20	4000	2°  30″	≥5	30-1000	37	19000	4920x2400x2730
QC12Y-20x5000	20	5000	2°  30″	≥4	20-800	37	25000	5900x3000x3300
QC12Y-20x6000	20	6000	2°  30″	≥4	20-800	37	47000	6700x3000x3000
QC12Y-25x2500	25	2500	3°	≥5	30-800	45	19000	3500x2400x2500
QC12Y-25x3200	25	3200	3°	≥4	30-800	45	22000	4200x2400x2500
QC12Y-25x4000	25	4000	3°	≥4	30-800	45	26000	4950x2500x2600
QC12Y-30x2500	30	2500	3°	≥4	30-800	37	28000	3300x2900x3000
QC12Y-30x3200	30	3200	3°  30″	≥4	30-800	45	34000	4200x2500x2600
QC12Y-40x2500	40	2500	4°	≥3	30-800	75	46000	3200x3300x3200
QC12Y-40x3200	40	3200	4°	≥3	30-800	90	58000	4300x3300x3000


6, Main configuration
1, electric control parts is manufactured by Schneider.
2, cylinder main sealing parts is manufactured by VALQUA of Japan.
3, hydraulic system is cartridge valve control, main part of hydraulic is manufactured by HOERBIGER of Germany.
4, cutting knife is manufactured by Shanghai brand (shang knife) 6CrW2Si.
5, hydraulic pump standard is space technology, lower noise gear pump NT3 series.
6, line guide and ball screw guide is supplied by HIWIN of Taiwan.
7, hydraulic system joint is EMB of Germany, which keep hydraulic system steady working.

7, Main performance characteristics:
Machine body is steel welded structure, annealing treatment, hydraulic top driving, vibration remove stress, high strength, good rigidity. Hydraulic swing shearing machine working principle is the main cylinder(fixed in plate) do cutting work through up-down method, nitrogen cylinder returning. The hydraulic is simple and moving is steady. The top knife of this swing cutting machine moves in arc method based on an axis. Through lever function, fulcrum strength is little, which can make knife mould and machine have longer using time. The whole structure is tightly and adjusting the top knife stroke without limit, improve worktable efficiency highly.
1, human safe device is used safe guard and electric box integrated lock.
2, integrated hydraulic system, high reliable.
3, mechanical twisting synchronization.
4, Estun E10 type steel sheet bending professional display device.
5, imported high performance turning encoder data feedback.
6, domestic famous integrated hydraulic system.
7, low voltage electric power from Schneider or Siemens.
8, cylinder sealing parts is PARKER.
9, T-type screw guide controls the movement of back gauge.
10, convex worktable compensation device.
11, with standard mould.

8, Accessories list

Serial No	First 01 Years Spares	Quantity
1	Oil cylinder joint sealing ring	1
2	Grease Gun	1
3	Oil Gun	1
4	Monkey Wrench	1 set
5	Internal Hexagonal Wrench	1 set
6	Instruction Book	In English
7	Quality Certificate	In English
8	Mobile Type Foot Switch
9	Adjusting Bolts	8 sets
10	Front Support	2 sets
11	Working Environment
1) Power :380V±10%.60HZ.3PH 2) Ambient temperature:5~40℃(Working Temperature) 3) Ambient humidity :20~80% RH 4) Far from stroke shaking and electromagnetism 5) No harmful gas and no corrosive gas and dirt-free 6) Conforms to the disposition of the machine directive(Directive 89/392 CEE) Conforms to the disposition of the following other directives:directive low voltage (73/23/CEE)/electromagnetic compatibility (89/336/CEE)


9, Price and payment term:
9-1 price:
Contact with me forwardly, there is discount price for you!

9-2 payment term: (ESCROW payment is safer and convenient for you)
30% deposit and the balance paid against the copy of B/L in 5 days by T/T

10, Delivery time:
15 days after received the 30% deposit by T/T.
