 Details

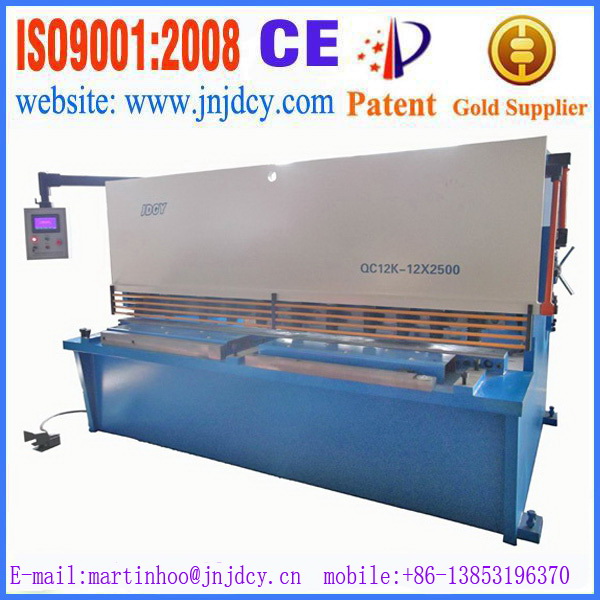

1, Name: QC12K CNC Shearing Machine

2, Picture and our power(certificate)Our QC12K CNC metal cutting machine has passed ISO9001-2008, CE certificate, and the machine also passed Chinese government exporting quality assurance quality certificate. 4 years gold supplier in alibaba website.

3, Video link:


4, Instruction:
CNC shearing machine is also called CNC cutting machine, hydraulic CNC shearing machine, steel sheet cutting machine, plate shears, guillotine shear, which is main used for cutting and shearing steel sheet.
This machine is mainly used for shearing and processing of metallic board in the industries such as machinery manufacture, high or low pressure switch cabinet, household appliance, automobile, grain machinery, medical appliance, kitchen equipment, light industry, textile machinery, chemical machinery, ship making, stainless steel decoration and so on.

5, Main Characteristics:
1) Hydraulic transmission, swing knife rest. The overall welding structure of machine frame is firm and durable. Machine frame is processed by annealing treatment. Spiral arc is first factory in China. Keet high shearing quality, no twisting and fold.
2) With the function of rapid adjustment of blade gaps, reliable location.
3) Adopted the device of stroke adjustment which to be convenient and rapid stepless control.
4) High precision ball screw and linear guide.
CNC system is from Dutch DELEM, Swiss CYBELEC and Japan MITSUBISHI.

6, Technical Parameters:

Model	Max.cutting  thickness (mm)	Max. Cutting  width (mm)	Shearing angle  (  °  ″  )	Strokes  (times/min)	Back gauge  (mm)	Main power  (KW)	weight  (kg)	Dimension (L x W x H)  mm
QC12K-4x2500	4	2500	1°  30″	≥18	20-600	4	4500	3040x1610x1650
QC12K-4x3200	4	3200	1°  30″	≥14	20-600	5.5	5900	3840x1610x1650
QC12K-4x4000	4	4000	1°  30″	≥10	20-600	5.5	7000	4640x1705x1700
QC12K-4x6000	4	6000	1°  30″	≥10	20-600	7.5	18000	6460x2100x3200
QC12K-6x2500	6	2500	1°  30″	≥18	20-600	7.5	7000	3140x1610x1650
QC12K-6x3200	6	3200	1°  30″	≥14	20-600	7.5	8000	3840x1610x1650
QC12K-6x4000	6	4000	1°  30″	≥10	20-600	7.5	9000	4640x1705x1700
QC12K-6x5000	6	5000	1°  30″	≥10	20-750	11	15500	5786x2200x2160
QC12K-6x6000	6	6000	1°  30″	≥7	20-800	15	19000	6900x2570x2280
QC12K-8x2500	8	2500	1°  30″	≥14	20-600	11	8000	3040x1610x1650
QC12K-8x3200	8	3200	1°  30″	≥10	20-600	11	9500	3840x1610x1650
QC12K-8x4000	8	4000	1°  30″	≥8	20-600	11	10000	4860x1705x1700
QC12K-8x5000	8	5000	1°  30″	≥7	20-750	15	17000	5786x2252x2310
QC12K-8x6000	8	6000	1°  30″	≥5	20-750	18.5	22000	6900x2570x2280
QC12K-10x2500	10	2500	1°  30″	≥11	20-600	15	8000	3350x2050x1950
QC12K-10x3200	10	3200	1°  30″	≥10	20-600	15	9000	4050x2050x1950
QC12K-10x4000	10	4000	1°  30″	≥12	20-600	18.5	15500	4800x2200x2100
QC12K-10x6000	10	6000	1°  30″	≥10	20-800	18.5	26000	6900x2570x2280
QC12K-12x2500	12	2500	1°  30″	≥11	20-600	18.5	12000	3350x2050x1950
QC12K-12x3200	12	3200	1°  30″	≥10	20-800	18.5	14500	4020x2050x2230
QC12K-12x4000	12	4000	1°  30″	≥8	20-800	18.5	18500	4820x2400x2730
QC12K-12x5000	12	5000	1°  30″	≥7	20-800	22	22000	5600x2500x2000
QC12K-12x6000	12	6000	1°  30″	≥6	20-800	22	24000	6900x2570x2280
QC12K-16x2500	16	2500	2°	≥8	20-800	18.5	14500	3520x2060x2350
QC12K-16x3200	16	3200	2°	≥7	20-800	22	17500	4062x2300x2320
QC12K-16x4000	16	4000	2°	≥5	20-800	22	20000	4850x2350x2300
QC12K-16x5000	16	5000	2°	≥5	20-800	22	29000	5900x2600x2700
QC12K-16x6000	16	6000	2°	≥5	20-800	22	40800	6900x2700x2700
QC12K-20x2500	20	2500	2°  30″	≥6	20-800	37	21000	3400x2088x2570
QC12K-20x3200	20	3200	2°  30″	≥5	30-800	37	27000	4150x2350x2710
QC12K-20x4000	20	4000	2°  30″	≥5	30-1000	37	28000	4920x2400x2730
QC12K-20x5000	20	5000	2°  30″	≥4	20-800	37	30000	5900x3000x3300
QC12K-20x6000	20	6000	2°  30″	≥4	20-800	37	50000	6700x3000x3000
QC12K-25x2500	25	2500	3°	≥5	30-800	45	23000	3500x2400x2500
QC12K-25x3200	25	3200	3°	≥4	30-800	45	26000	4200x2400x2500
QC12K-25x4000	25	4000	3°	≥4	30-800	45	30000	4950x2500x2600
QC12K-30x2500	30	2500	3°	≥4	30-800	37	35000	3300x2900x3000
QC12K-30x3200	30	3200	3°  30″	≥4	30-800	45	39000	4200x2500x2600
QC12K-40x2500	40	2500	4°	≥3	30-800	75	50000	3200x3300x3200
QC12K-40x3200	40	3200	4°	≥3	30-800	90	65000	4300x3300x3000

 CNC back gauge: max stoke 1000mm; max speed 5m/min; location precision ±0.2mm
Note: we can reform usual shearing machine by fixing CNC back gauge or CNC front feeding to achieve the same specification above.

7, Accessories list or configuration:
7-1, Configuration:

CNC control system	Mitsubishi of Japan	DELEM310 of Holland
Driving	AC servo motor(Panasonic of Japan)	AC servo motor(Panasonic of Japan)
Guide screw	Ball screw(PMI of Taiwan)	Ball screw(PMI of Taiwan)
Guide	High precision guide(domestic)	High precision guide(domestic)
Gauge device	CNC back gauge device	CNC back gauge device


7-2, accessories list

No.	Name	Specification or model	quantity	remark
1	CNC shearing machine		1 set
2	Operation instruction		1 book
3	Packing list		1 sheet
4	Quality certificate		1 sheet
5	Foundation bolt		4 sets
6	Sealing ring		1 bag
7	Foot-touch switch		1 pc
8	inner hexagon spanner		1 set
9	Grease gun	HS87-4Q	1 pc
10	Door locked key		1 set
11	System key		1 set
12	Side block		3 pcs
13	Nitrogen charged component		1 set
14	Top and bottom knife mold		1 set	Installed in machine


8, Technical index:

Max speed of location (m/min)	10
Max stroke (mm)	600
Location precision(mm)	±0.2


9, Price and payment term:
9-1 price:
Contact with me forwardly, there is discount price for you!

9-2 payment term: (ESCROW payment is safer and convenient for you)
30% deposit and the balance paid against the copy of B/L in 5 days by T/T

10, Delivery time:
30 days after received the 30% deposit by T/T.
