 Details

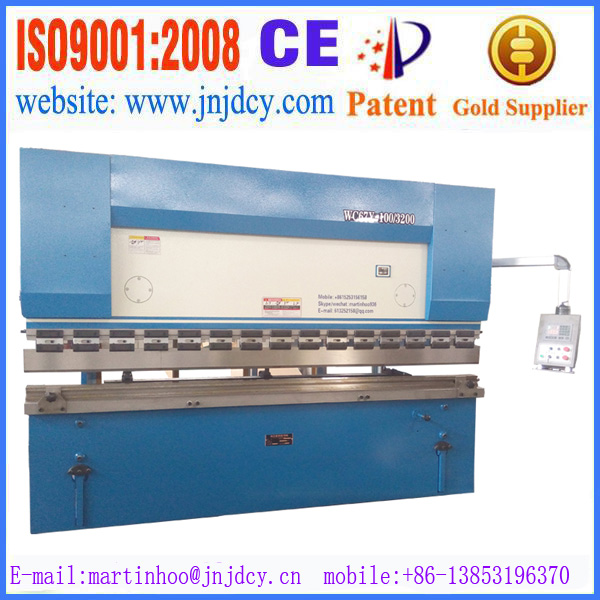

1, Name: WC67Y Hydraulic press brake

2, Picture and our power(certificate)


Our WC67Y hydraulic press brake has passed ISO9001-2008, CE certificate, and the machine also passed Chinese government exporting quality assurance quality certificate. 4 years gold supplier in alibaba website.

3, Video link:


4, Main performance characteristics:
1, machine body is steel welded structure, internal stress is removed through normalizing and high-frequency vibration, which can keep high bending precision, good strength, anti-twisting, anti-slope. Thicker worktable and sliding block can assure high strength. So it can keep little deformation when bending work is operated. Mould have good linearity and angle.
2, the standard design is learn from DIN55222T2-80 of Germany.
3, hydraulic system is integration type control system, less tube installation. Importing seal ring improve working stability, the outline is aesthetic and pithy.
4, main cylinder piston is processed by nickel and phosphor, which is space technology. The strength can be higher than HRC60. the piston cover use zinc base alloy with anti abrasion and high lubrication, which can keep good working state long-term.
5, use twisting axis synchronization, mechanical baffleplate, reliable, economy, high precision.
6, electric adjusting back gauge distance and top sliding block stroke. Little adjusting by hand, digital showing.
7, top mold have deflection compensation structure.

5, Technical Parameters:

Model	Nominal pressure (KN)	Worktable  length  (mm)	Poles  Distance (mm)	Throat depth (mm)	Slider travel (mm)	Open  height (mm)	Main motor (KW)	Machine weight (kg)	Machine size L×W×H (mm)
WC67Y-30T/1600	300	1600	1280	200	70	220	3	1300	1600x800x1620
WC67Y-30T/2000	300	2000	1600	200	80	240	3	2500	2000x780x1700
WC67Y-40T/2200	400	2200	1850	250	100	320	4	2600	2260x1200x1900
WC67Y-40T/2500	400	2500	1850	250	100	320	4	2900	2560x1200x1900
WC67Y-50T/2500	500	2500	1850	250	100	320	4	3100	2560x1200x1900
WC67Y-63T/2500	630	2500	1900	250	120	320	5.5	3900	2560x1340x2200
WC67Y-63T/3200	630	3200	2560	250	120	320	5.5	4800	3260x1340x2200
WC67Y-80T/2500	800	2500	1990	320	120	320	7.5	5200	2560x1400x2300
WC67Y-80T/3200	800	3200	2560	320	120	350	7.5	5500	3260x1400x2300
WC67Y-80T/4000	800	4000	3000	320	120	350	7.5	6100	4060x1400x2300
WC67Y-100T/2500	1000	2500	2020	320	130	370	7.5	6000	2560x1480x2450
WC67Y-100T/3200	1000	3200	2600	320	130	370	7.5	6600	3260x1480x2450
WC67Y-100T/4000	1000	4000	3000	320	130	370	7.5	7600	4060x1480x2450
WC67Y-125T/3200	1250	3200	2500	320	130	370	11	7800	3260x1520x2550
WC67Y-125T/4000	1250	4000	3000	320	130	370	11	8000	4060x1520x2550
WC67Y-160T/3200	1600	3200	2600	320	150	460	11	9800	3260x1600x2800
WC67Y-160T/4000	1600	4000	3000	320	150	460	11	11400	4060x1600x2800
WC67Y-160T/5000	1600	5000	4000	320	150	460	11	12800	5060x1700x2900
WC67Y-160T/6000	1600	6000	5000	320	150	460	11	14600	6060x1700x3000
WC67Y-200T/3200	2000	3200	2500	400	200	460	15	13500	3260x1600x2800
WC67Y-200T/4000	2000	4000	3000	400	200	460	15	14800	4060x1600x2800
WC67Y-200T/5000	2000	5000	4000	400	200	460	15	16600	5060x1700x2900
WC67Y-200T/6000	2000	6000	5000	400	200	460	15	18800	6060x1700x3000
WC67Y-250T/3200	2500	3200	2500	400	200	590	18.5	15800	3260x1600x2800
WC67Y-250T/4000	2500	4000	3000	400	200	590	18.5	16500	4060x1700x3000
WC67Y-250T/5000	2500	5000	4000	400	200	590	18.5	17800	5060x1700x3100
WC67Y-250T/6000	2500	6000	5000	400	200	590	18.5	19700	6060x1800x3200
WC67Y-300T/3200	3000	3200	2500	400	250	590	22	18000	3260x1900x3000
WC67Y-300T/4000	3000	4000	3000	400	250	590	22	20000	4060x2000x3000
WC67Y-300T/5000	3000	5000	4000	400	250	590	22	23000	5060x2000x3100
WC67Y-300T/6000	3000	6000	5000	400	250	590	22	26500	6060x2100x3200
WC67Y-400T/4000	4000	4000	3000	400	250	590	30	24500	4060x2000x3100
WC67Y-400T/5000	4000	5000	4000	400	250	590	30	28000	5060x2000x3200
WC67Y-400T/6000	4000	6000	5000	400	250	590	30	31200	6060x2100x3300
WC67Y-500T/4000	5000	4000	3000	400	250	590	37	33000	4060x2300x3500
WC67Y-500T/5000	5000	5000	4000	400	250	590	37	35000	5060x2300x3500
WC67Y-500T/6000	5000	6000	5000	400	320	590	37	38500	6060x2300x3600
WC67Y-600T/4000	6000	4000	3000	400	320	590	45	35000	4060x2400x3600
WC67Y-600T/5000	6000	5000	4000	400	250	590	37	37500	5060x2400x3600
WC67Y-600T/6000	6000	6000	5000	400	320	590	45	43000	6060x2500x3700
WC67Y-800T/6000	8000	6000	5000	400	320	650	45	63000	6200x2600x4300

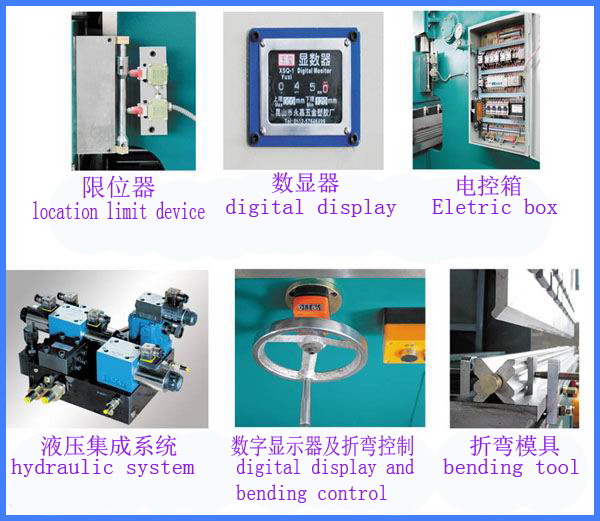

6, Main configuration:
1, cylinder is supplied by professional factory in domestic Jianhu Hydraulic. Sealing accessory is imported from VALQUA of Japan.
2, electric box accessory is manufactured by Schneider.
3, hydraulic system is controlled by cartridge valve, working is quick and steady, hydraulic parts is manufactured by second factory of Shanghai Hydraulic Parts.
4, hydraulic pump standard is space technology, lower noise gear pump NT3 series.

7, Packing list

No	First 01 Years Spares	Quantity
1	Oil cylinder joint sealing ring	1
2	Grease Gun	1
3	Oil Gun	1
4	Monkey Wrench	1 set
5	Internal Hexagonal Wrench	1 set
6	Instruction Book	In English
7	Quality Certificate	In English
8	Mobile Type Foot Switch
9	Adjusting Bolts	8 sets
10	Front Support	2 sets
11	Working Environment
1, Power :380V±10%.60HZ.3PH 2, Ambient temperature:5~40℃(Working Temperature) 3, Ambient humidity :20~80% RH 4, Far from stroke shaking and electromagnetism 5, No harmful gas and no corrosive gas and dirt-free 6, Conforms to the disposition of the machine directive(Directive 89/392 CEE) 7, Conforms to the disposition of the following other directives:directive low voltage(73/23/CEE)/electromagnetic compatibility (89/336/CEE)



8, Price and payment term:
8-1 price:
Contact with me forwardly, there is discount price for you!

8-2 payment term: (ESCROW payment is safer and convenient for you)
30% deposit and the balance paid against the copy of B/L in 5 days by T/T

9, Delivery time:
15 days after received the 30% deposit by T/T.
