Details1, Name: CNC busbar processing machine
Model: NCMX-303K, NCMX-503K

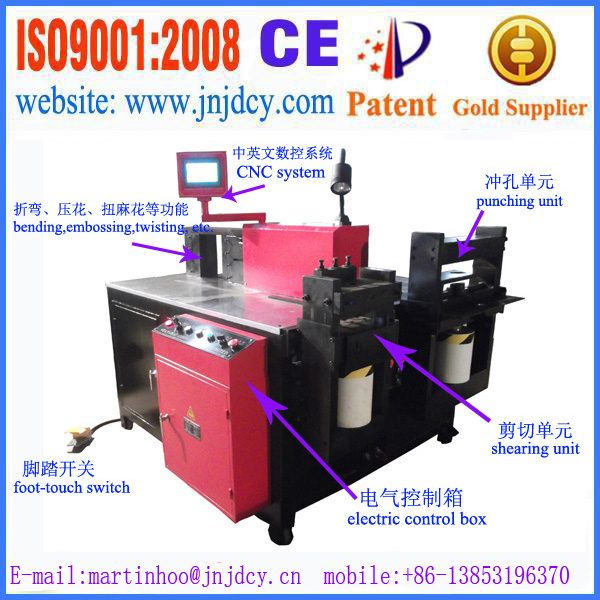

2, Picture and our power(certificate)
NCMX series busbar machine has passed ISO9001-2008, CE certificate, and the machine also passed Chinese government exporting quality assurance quality certificate. 4 years gold supplier in alibaba website.
3, Video link:
4, Instruction:
busbar machine is also called busbar processing machine, busbar shearing punching bending machine, copper busbar machine, aluminum busbar machine, which is mainly used in electric industry.
NCMX Busbar Machine including: NCMX-303K, NCMX-503K
This kind machine is mainly used for different types of processing of copper or aluminum busbar. One machine can carry out processing of punching, shearing and bending at the same time or respectively. It is easy to operate, convenient to use and high production efficiency. So it is an ideal processing equipment for electrical appliance manufacture of high and low voltage.
5, Main Characteristics:
1, This machine has 3 units for punching, shearing and bending and through changing die, it can do special processing work such as pressing, embossing, pressing cable joint, twisting and so on.
2, It is convenient for using and higher production efficiency than traditional busbar processing equipments.
3, You can adjust working stroke of each unit conveniently to reduce machining auxiliary time and improve production efficiency.
4, We adopt vertical machining method for punching and shearing unit, so operation is flexible and convenient. We use flatedge shearing method, so the work piece surface is neater and smoother
5, Adopting horizontal bending type to achieve flat bending and vertical bending by changing tools. CNC control bring higher precision, just input required bending angle, related thickness, the finished workpiece is very perfect with your required.
6, There are 4 trundles. So the machine can be moved conveniently by adjusting them.
The precision of angle is improved obviously! We use electrical non-identation die to guarantee bending precision and no bending mark. Control accuracy of bending angle: ±1º
6, Technical parameters:
| NCMX—303K | NCMX-503K | ||
| Punching | Max power (KN) | 300 | 500 |
| Punching Diameter (mm) | ф4.3～ф25 | ф4.3～ф34 | |
| Max thickness (mm) | 12 | 16 | |
| Max width (mm) | 150 | 250 | |
| Shearing | Max thickness (mm) | 12 | 16 |
| Max width (mm) | 150 | 250 | |
| Bending | Max power (KN) | 300 | 500 |
| Max width (mm) | 150 | 250 | |
| Max thickness (mm) | 12 | 16 | |
| Vertical Bending | Max width (mm) | 100 (10mm thick copper) | 100 (10mm thickcopper) |
| Min bending angle degree | 90° | 90° | |
| Embossing | √ | √ | |
| Pressing Cable Joint | √ | √ | |
| Twisting | √ | √ | |
| Outline Dimensions | 1300×1000×900 | 1500×1345×900 | |
| Power of Main Motor (KW) | 3×4 | 3×5.5 |

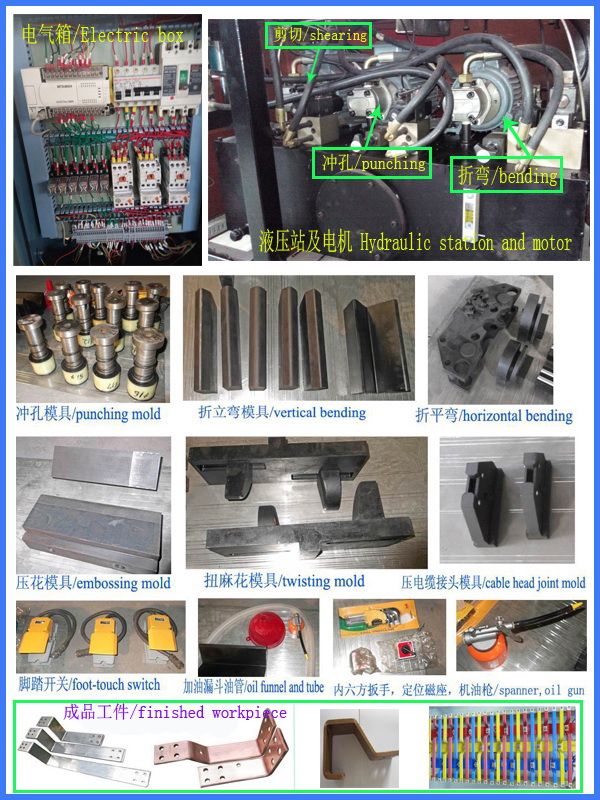

| No. | Name | Unit | quantity |
| 1 | Busbar machine | Set | 1 |
| 2 | Operation instruction | book | 1 |
| 3 | key | Set | 1 |
| 4 | Punching mould Ф9, Ф11, Ф13, Ф17 | Set | 1 of each |
| 5 | Cutting mould(installed in machine) | Set | 1 |
| 6 | Horizontal bending mould（R5、R10） | Set | 1 |
| 7 | Vertical bending mould | Set | 1 |
| 8 | Foot-touch switch | PC | 3 |
| 9 | inner hexagon spanner | Set | 1 |
| 10 | spanner 27-30 | PC | 1 |
| 11 | Sealing ring | Wrap | 1 |
| 12 | oil filler | PC | 1 |
| 13 | oil filler pipe | PC | 1 |
| 14 | oil gun | PC | 1 |
| 15 | Location magnetism seat | PC | 2 |
| 16 | Nuts and bolts of bottom | PC | 4 |
| 17 | Location needle | PC | 1 |
