Details
1, Name: multi-function busbar processing machine
Model: DGWMX-303D, DGWMX-503D

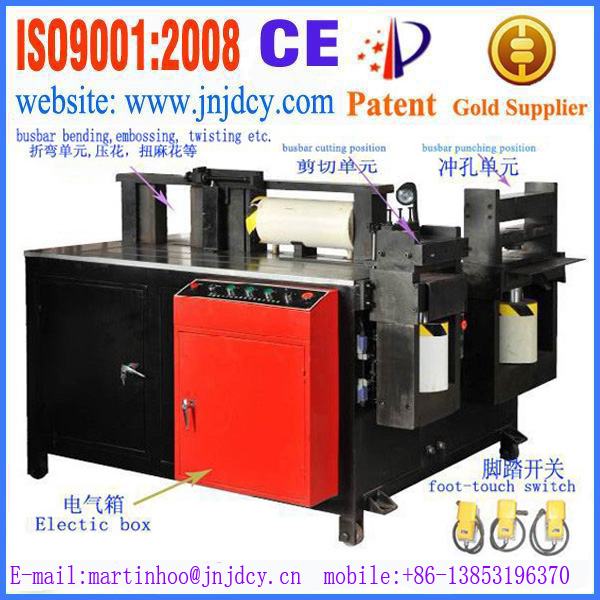

2, Picture and our power:
DGWMX series busbar machine has passed ISO9001-2008, CE certificate, and the machine also passed Chinese government exporting quality assurance quality certificate. 4 years gold supplier in alibaba website.
3, Video link:
4, Instruction:busbar machine is also called
busbar processing machine, busbar bending punching shearing machine, copper
busbar machine, aluminum busbar machine, which is mainly used in electric industry.
Our multi-function
busbar processing machine includes DGWMX-303D and DGWMX-503D
This kind machine is mainly used for different types of processing of copper or aluminum busbar. One machine can carry out processing of punching, shearing and bending at the same time or respectively. It is easy to operate, convenient to use and high production efficiency. So it is an ideal processing equipment for electrical appliance manufacture of high and low voltage.
5, Main Characteristics:1) This machine has 3 units for punching, shearing and bending and can do special processing work such as pressing, embossing, pressing cable joint, twisting and so on.
2) Three working unit controlled by respective pump, can work at the same time. Improve working efficiency. Two operation method: Button control and Foot-touch switch control.
3) It is convenient for using and higher production efficiency than traditional busbar processing equipments.
4) You can adjust working stroke of each unit conveniently to reduce machining auxiliary time and improve production efficiency.
5) We adopt vertical machining method for punching and shearing unit, so operation is flexible and convenient. We use flatedge shearing method, so the work piece surface is neater and smoother
6) Adopting horizontal bending type to achieve flat bending and vertical bending by changing tools.
7) Through changing tools, this machine can achieve many functions like embossing, pressing, pressing cable joint, twisting and so on.
8) There are 4 trundles. So the machine can be moved conveniently by adjusting them.
6, Technical parameters: | | | DGWMX-303D | DGWMX-503D |
| Punching | Max power (KN) | 300 | 500 |
| Punching Diameter (mm) | Φ4.3～Φ25 | Φ4.3～Φ34 |
| Max thickness (mm) | 12 | 16 |
| Max width (mm) | 150 | 250 |
| Shearing | Max thickness (mm) | 12 | 16 |
| Max width (mm) | 150 | 250 |
| Bending | Max power (KN) | 300 | 500 |
| Max width (mm) | 150 | 250 |
| Max thickness (mm) | 12 | 16 |
| Vertical Bending | Max width (mm) | 100(10mm thick copper) | 120(12mm thick copper) |
| Min. bending angle degree | 90° | 90° |
| Embossing | | √ | √ |
| Pressing Cable Joint | | √ | √ |
| Twisting | | √ | √ |
| Outline Dimensions | | 1300×1000×900 | 1500×1345×900 |
| Main motor power (KW) | | 3×4 | 3×5.5 |
7, Accessories list or configuration:| No. | Name | Unit | quantity |
| 1 | Busbar machine | Set | 1 |
| 2 | Operation instruction | book | 1 |
| 3 | key | Set | 1 |
| 4 | Punching mould Φ9, Φ11, Φ13, Φ17 | Set | 1 of each |
| 5 | Cutting mould(installed in machine) | Set | 1 |
| 6 | Horizontal bending mould（R5、R10） | Set | 1 |
| 7 | Vertical bending mould | Set | 1 |
| 8 | Foot-touch switch | PC | 3 |
| 9 | inner hexagon spanner | Set | 1 |
| 10 | spanner 27-30 | PC | 1 |
| 11 | Sealing ring | Wrap | 1 |
| 12 | oil filler | PC | 1 |
| 13 | oil filler pipe | PC | 1 |
| 14 | oil gun | PC | 1 |
| 15 | Location magnetism seat | PC | 2 |
| 16 | Nuts and bolts of bottom | PC | 4 |
| 17 | Location needle | PC | 1 |
8, Price and payment term: 8-1 price:
Contact with me forwardly, there is discount price for you!
8-2 payment term: (ESCROW payment is safer and convenient for you)
30% deposit and the balance paid against the copy of B/L in 5 days by T/T
9, Delivery time: 3 days after received the 30% deposit by T/T.

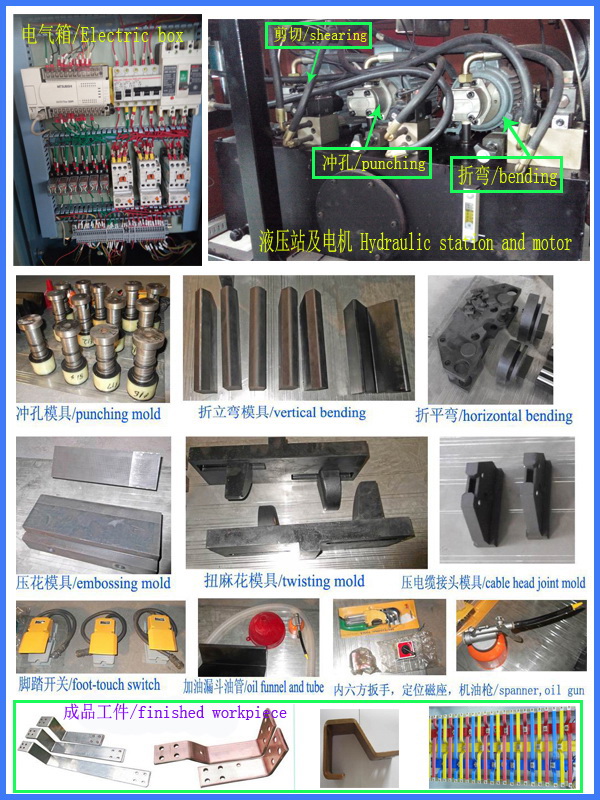

10, Details of busbar processing:
11, Certificate:
