BC40-13 CNC V-Cutting machine
Details
1, Name: BC40-13 CNC V grooving machine

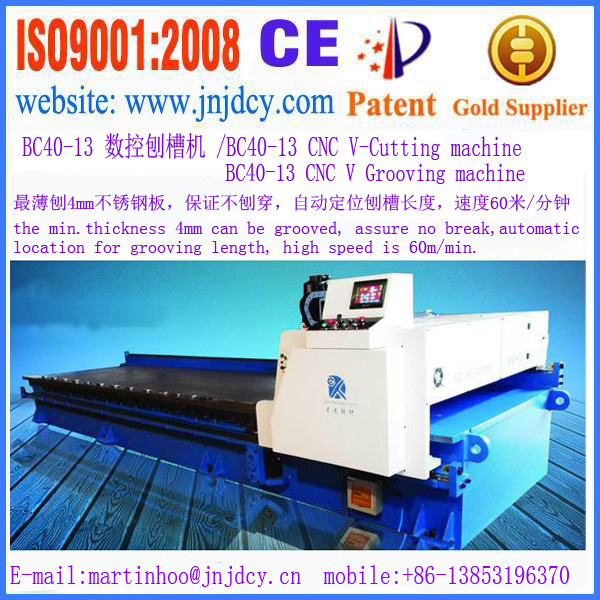

2, Picture and our power(certificate)
Our BC40-13 CNC Keyway Planner has passed ISO9001:2008, CE certificate. And at the same time, it is passed test of Chinese exporting government and authorize us to exporting.
3, Video link:
4, Instruction:CNC keyway planer is also called CNC metal groover, steel sheet grooving machine, stainless steel V groover, which is mainly used for making groover in steel sheet. Then it is convenient for steel sheet bending.
Usage: before bending, grooving the steel sheet, then bending, the corner is more beautiful!
BC40-13 CNC Keyway Planer is used in metal steel industry which requires high precision processing elevator, decorative material, stainless steel processing, household electric appliance and so on. It is better effect for welded-steel plate construction, annealing treatment and stability. Working accuracy efficiency is higher and labor intensity is less.
5, Main characteristics: 1) Using double house type, which is convenient for up-down materials.
2) Without environment pollution of gas-cooling.
3) Two axis numerical control with high processing accuracy.
6, Technical parameters:| Name | BC40-13 CNC Keyway planer |
| Working range | Max of processing sheet length | 4m |
| Max of processing sheet width | 1.3 m |
| Max of grooving depth | 1.5 mm/time |
| location accuracy | Y axis | ±0.1mm |
| Z axis | ±0.01mm |
| Planer tool quantity | | 3 pcs |
| Grooving speed | | 50m/min |
| Shifting speed | Y axis | 10m/min |
| Z axis | 4m/min |
| Worktable size | length | 4m |
| width | 1.3m |
Technical index:
| Z axis resolution | ±0.01 |
| Y axis resolution | ±0.1 |
| Max speed of Y axis location (m/min) | 10 |
| Max speed of Z axis location (m/min) | 4 |
7, Configuration Details:| CNC control system | Mitsubishi of Japan |
| Display | STN dual color LCD display with pels 320x240 |
| Quantity of axes | 2 axes |
| Driving method | AC servo |
| PLC function built-in, less electrical equipments and more reliable | yes |
| Motor of Y and Z axes | Full numerical AC servo motor
(Panasonic or Mitsubishi of Japan) |
| Motor of X | Variable frequency motor(LG) |
| Guide screw | High precision ball screw(PMI of Taiwan) |
| Guide | High precision straight guide(PMI of Taiwan) |
| Coder | Built-in |
8, Price and payment term: 8-1 price:
Contact with me forwardly. There is discount price for you!
8-2 payment term: (ESCROW payment is safer and convenient for you)
30% deposit and the balance paid before delivery by T/T.
9, Delivery time: 30 days after received the 30% deposit by T/T.

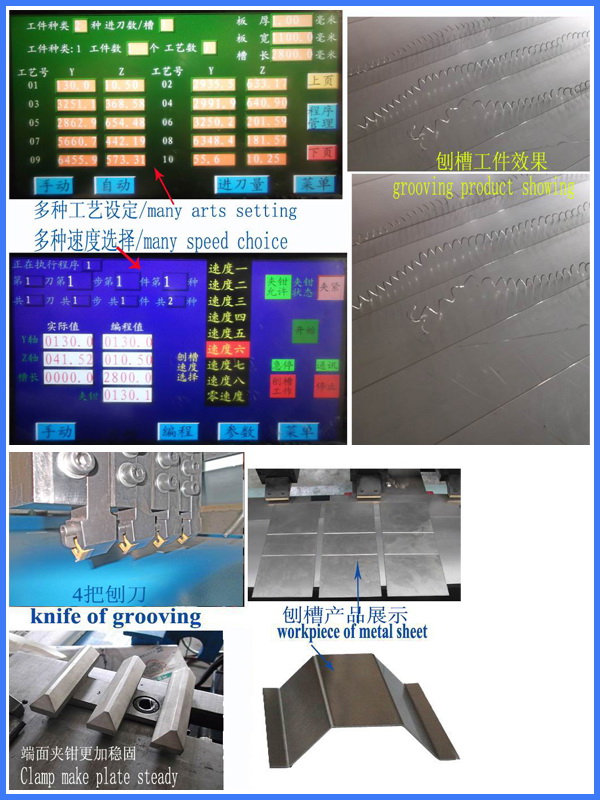

10, ISO9001-2008 Certificate: 11, Structure of machine
12, Company showing:
