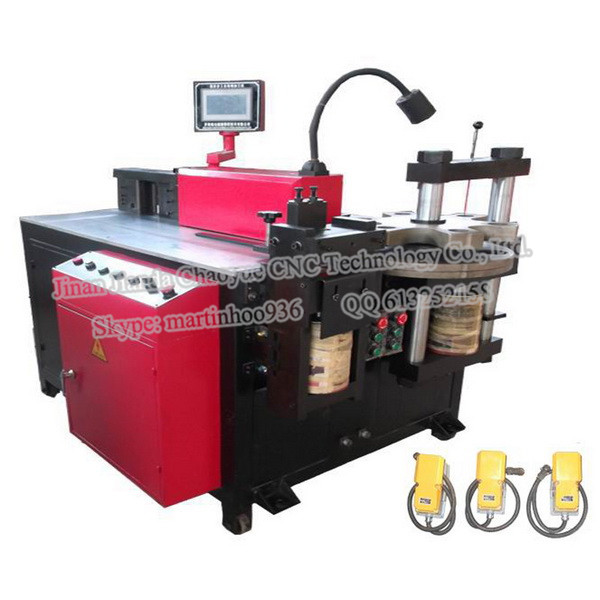

Busbar machine safe operating rule and attentions.
Date of publication:2014-03-24
Before operation
1 , for the first time must give the tank before starting the oiling to prevent damage to the pump.
2, you must read this manual, are familiar with the machine's structure, properties and method of operation .
3, do not wear clothes with a scarf or coat like operation .
4 , the right way to work , in order to stop as soon as possible and get rid of the risk in the event of failure.
5 , if the ambient temperature is below 0 ℃, the work should be preceded by the boot empty running a few minutes.
Operation
1 , installation, commissioning ( to die, blade gap adjustment ) or removing the mold , the machine must be performed by personnel familiar with the prescribed procedures.
2, the machine during normal operation , do not handle or on the part of the body between the upper and lower mold ( blade ) , in order to avoid accidents.
3 Do all debris and tools on the table , in order to avoid rolling into the mold or the blade and cause accidents.
4, due to the operation of the machine multiplayer , so there must be someone responsible for directing the production .
5 , be sure to choose a good gap and bend radius fillet shear blades and dies according to copper ( or aluminum ) in thickness.
6 , the replacement of the mold must be shut down to avoid danger.
7 , in operation , waiting to be careful when holding the workpiece slide down.
8 , should be regularly checked and die edge sharpness of the blade , the blade becomes dull if found , should be promptly grinding or replacement.
9 , to keep the oil clean and oil flow , each unit class to lubricate moving parts .
10 , electrical and hydraulic components must ensure flexibility and movement in the correct position when the anomaly was found to be immediately stopped and checked.
After the operation
After the operation, we must act in a safe shutdown in the following order :
( 1 ) Each unit of work off button .
( 2 ) turn off the power switch on the operation panel .
( 3 ) off the main circuit breaker.
( 4 ) the power switch off workshop
